Global Stim : Technical specifications
1. Belt
Reference | EXBELT2M |
Size (men and women) | De 34 à 60 |
Length of unfolded belt | 120 cm |
Textile fibre used | 94 % polyester, 6 % elastane |
2. Mains powered
Caution: Sport-Elec recommends that you only use the power supply supplied with your device. If your power supply is damaged, please replace it.
Référence : MN-A403-E120 AC/DC.. . 100-240V - 50/60Hz - 0.25A 5V 600mA
3. Electrodes adhésives
Class I medical device (Directive 93/42/EEC).
Type BF applied parts
Adhesive, hydrophilic and hypoallergenic electrodes
Reference | EASF110x71 |
Contact surface | 67,5 x 47 mm (x 2) |
Estimated life time | 40 uses |
Please feel free to order the new Global Stim compatible adhesive electrodes from www.sport-elec.com. The compatibility of our electrodes is clearly displayed, but if you cannot find the product yourself, the after-sales team will be able to help you (contact us via the site for this).
4. Casing
Software version | 1 |
Type of current | Rectangular and symmetrical biphasic |
Number of programmes | 8 programmes |
Number of adjustable independent channels | 2 |
Current | de 0 à 60 mA - de 0 à 60 Vcc - de 0 à 1000 Ω |
Frequency range / Pulse width range | de 1 à 100 Hz / De 160 à 320 μs |
Power supply | Rechargeable battery LiPo. 3,7V - 420mAh |
Case dimensions and weight | 78 x 52 x 20 mm - 51 g |
Automatic shutdown at the end of each programme | Yes - after about 4.5 minutes of inactivity |
Ignition safety | 100 % |
No contact detection | Yes - Independent detection on each of the 2 outputs |
Power indicator | Écran LCD : 2 bargraphes |
Low and/or defective battery indicator | Oui - LCD screen |
Programme indicator | LCD screen : 1-2-3-4-5-6-7-8 |
Storage temperature |
0 °C à + 40 °C |
Relative humidity of storage |
10 % à 90 % |
Temperature of use | + 5 °C à + 40 °C |
Relative humidity of use | 20 % à 65 % |
Electrode connection | 2 snaps per electrode |
Warning | Read the instructions carefully |
Warranty / Life cycle | 2 years |

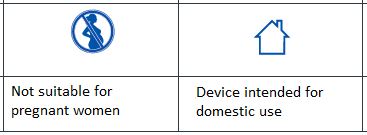

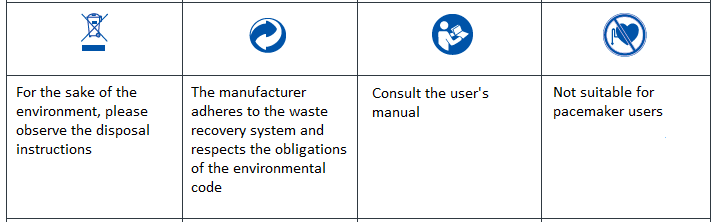

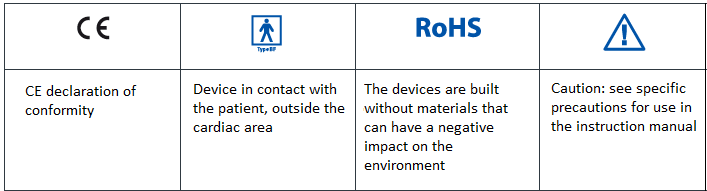

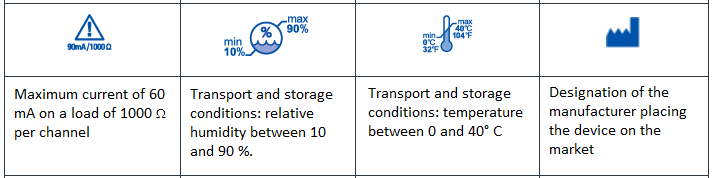

5. device for non-therapeutic purposes, standards
